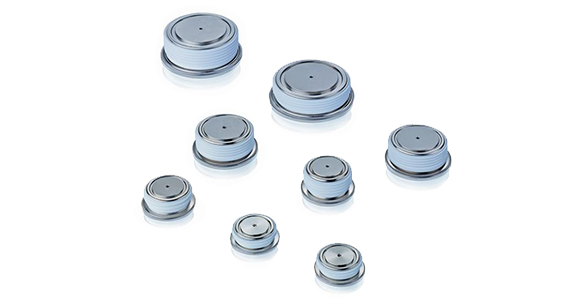

standard recovery diodes

diodes can be subdivided into two main classes: rectifier diodes and fast diodes. rectifier diodes are split into two sub-classes: normal recovery diodes and avalanche diodes. rectifier diodes are generally used for conversion of ac (alternating current) to dc (direct current).

normal recovery diodes are optimized with respect to low conduction losses and are able to handle very large currents.

avalanche diodes are self protected against transient over-voltages.

for downloading and printing of data sheets in pdf format, click on the part numbers.

avalanche diodes part number	v_rrm (v)	i_favm (a)	i_fsm (ka)	*package (mm)**
	1700	1310	15.0	60/34
	2000	2700	31.0	75/47
	2300	2350	29.0	75/47
	2300	1140	13.5	60/34
	2600	1020	11.5	60/34
	3200	910	9.2	60/34
	3200	2110	26.0	75/47
	3800	790	7.6	60/34
	3800	1620	20.5	75/47
	5000	690	7.0	60/34
	5000	1410	17.5	75/47

normal recovery diodes part number	v_rrm (v)	i_favm (a)	i_fsm (ka)	*package (mm)**
	2000	7030	65.0	101.5/63
	2400	6520	59.0	101.5/63
	2800	5380	65.0	120/78
	2800	6830	87.0	151/100
	2800	7385	87.0	151/100
	2800	1285	15.0	60/34
	2800	1285	15.0	58.5/34
	2800	2600	30.0	75/47
	3200	4710	61.0	101.5/63
	4000	5200	85.0	151/100
	4000	3847	46.0	101.5/63
	4000	3941	46.0	101.5/63
	5000	1028	12.0	58.8/34
	5000	1028	12.0	60/34
	5000	1978	24.0	75/47
	5000	3638	45.0	101.5/63
	5000	3814	45.0	101.5/63
	5500	3480	46.0	120/78
	5500	4570	73.0	151/100
	6000	662	10.5	58.5/34
	6000	845	11.0	58.5/34
	6000	1363	17.5	74.5/47
	6000	1363	17.5	74.5/47
	6000	3246	40.0	101.5/63
	6000	3097	40.0	101.5/63

*note: maximum diameter / pole-piece diameter
