welding diodes
welding diodes are designed for medium and high frequency welding equipment and optimized for high current rectifiers. the on-state voltage is very low and the output current is high.

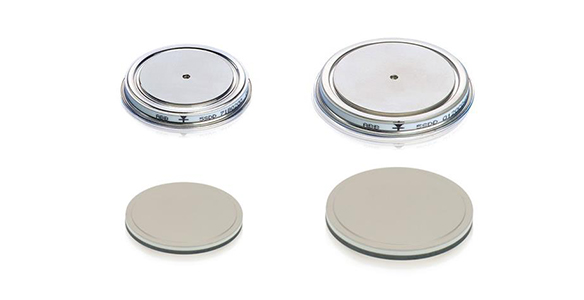

abb is selling both normal housed and housing-less welding diodes. the latter is becoming more and more important in high current welding applications for joining of high refractory materials.
| medium frequency part number | vrrm (v) | ifavm (a) | ifsm (ka) | package* (mm) |
| 200 | 7110 | 55.0 | 60/44 | |
| 200 | 11000 | 85.0 | 75/57 | |
5sdd 71b0200 | 400 | 7110 | 55.0 | 62/44 |
| 400 | 7110 | 55.0 | 60/44 | |
| 400 | 11350 | 85.0 | 75/57 | |
| 400 | 9250 | 60.0 | 53/47 | |
| 400 | 10502 | 70.0 | 56/49.5 | |
| 400 | 13500 | 85.0 | 63.5/57 |
| high frequency part number | vrrm (v) | ifavm (a) | ifsm (ka) | package* (mm) |
| 400 | 6266 | 44 | 63/44 | |
| 400 | 6266 | 44 | 61/44 | |
| 400 | 9041 | 48 | 53/47 | |
| 400 | 10159 | 70 | 75.5/57 | |
| 400 | 10266 | 54 | 56/49.5 | |
| 400 | 13058 | 70 | 63.5/57 |
*note: maximum diameter / pole-piece diameter
