phase controlled thyristors (pct)

thyristors are typically used as phase-controlled current valves for ac to dc conversion and vice versa, operating at low frequencies (most often around ac line frequency). in the conducting state, thyristors feature very low losses, making them attractive devices to efficiently control very high currents and energies.

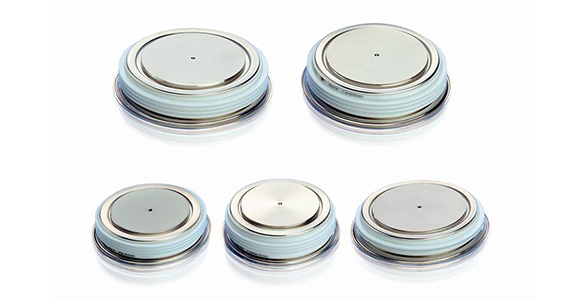

all abb thyristors are press-pack devices. they are pressed with a relatively high force onto heat-sinks which also serve as electrical contacts to the thyristor terminals.

part number	v_drm (v)	i_tav (a)	i_tsm (ka)	package* (mm)
	1600	641	9.9	52.5/29.5
	1600	969	15.0	58.5/34
	1600	969	15.0	58.5/34
	1600	1901	27.3	74.5/47
	1600	1956	27.3	74.5/47
	1600	3370	49.0	101.5/63
	1600	3370	49.0	101.5/63
	1800	730	9.0	58.5/34
	1800	932	13.7	58.5/34
	1800	1660	21.0	74.5/47
	1800	1825	26.2	74.5/47
	1800	1870	26.2	74.5/47
	1800	3108	47.0	102/63
	1800	4390	64.0	120/78
	1800	3108	47.0	101.5/63
	1800	6100	94.0	150/100
	2200	863	12.0	58.5/34
	2200	1702	25.5	74.5/47
	2200	1743	25.5	74.5/47
	2200	2855	45.0	101.5/63
	2200	2855	45.0	101.5/63
	2800	620	8.8	60/34
	2800	792	10.6	58.5/34
	2800	792	10.6	58.5/34
	2800	1589	23.6	74.5/47
	2800	1400	18.0	74.5/47
	2800	1554	23.6	74.5/47
	2800	2670	43.0	101.5/63
	2800	2670	43.0	101.5/63
	2800	3740	65.5	120/78
	2800	5080	77.0	150/100
	2800	5490	77.0	150/100
	4200	470	7.1	60/34
	4200	1150	17.3	75/47
	4200	2192	32.0	101.5/63
	4200	3170	54.0	120/78
	4200	3960	64.5	150/100
	4200	4275	64.5	150/100
	5200	440	6.1	60/34
	5200	1975	34.0	102/63
	5200	2760	50.5	120/78
	5200	2540	50.5	120/78
	5200	3600	63.0	150/100
	5200	3875	63.0	150/100
	5200	5120	99.0	172/110
	6500	350	4.7	60/34
	6500	380	4.7	60/34
	6500	830	15.1	75/47
	6500	720	15.1	75/47
	6500	1370	31.5	102/63
	6500	1800	47.5	120/78
	6500	2810	65.0	150/100
	6500	4250	86.0	172/110
	7200	4840	92.0	192/138
	8500	4240	90.0	192/138

*note: maximum diameter / pole-piece diameter
