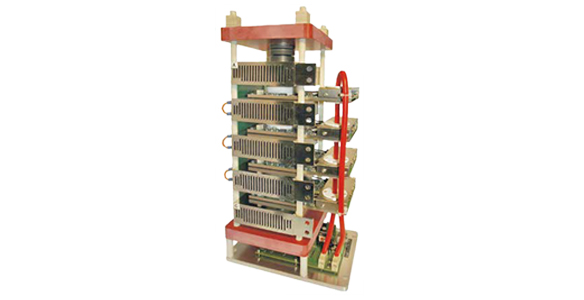

pps-th51 for pulsed power applications
solid state high voltage, high current switch for pulsed power applications
general applications:
thyratron replacement
food sterilization
medical systems
radar power supplies
security systems
high power lasers
beam accelerators
seismic research
environnemental systems (de-nox/sox filters)
features :
dc voltage capability up to 30kv
high non-repetitive pulse current up to 20ka
high repetition rate up to 1300hz
high di/dt capability up to 10ka/µs
reverse conducting with monolithic integrated free wheel diode
immune to vibration as compared to thyratron
air or liquid cooling
ready to use with integrated power supply, monitor and driving system
