dc breaker

dc breaker

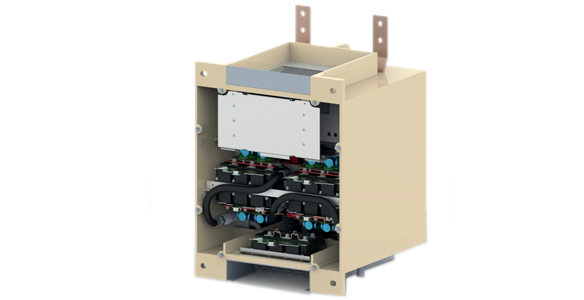

this new type of solid-state dc breaker is designed and manufactured by astrol electronic in switzerland. it provides all important protection functions and is able to isolate short-circuit events in microseconds. as a fully independent component, it provides revolutionary possibilities to system integrators.

comparison mechanical–solid state switch

item

mechanical switch

solid state switch

switch total loss

low

high

switch time

slow(>3-20ms)

fast(<20us)

mechanical size

small

medium

the power loss over a dc-breaker can be several kilowatts. therefore in most of this system a water cooling is recommended. in cases where water cooling is not possible air cooling can be done. in the case of air cooling the size of the switch is much bigger.



application fields:

apart from the shipping industry, the product can also be used in renewable energy connection, battery storage applications and dc or combined dc and ac microgrids.



dc breaker series


500a

1ka

2ka

3ka

4ka

5ka

1kv

3kv

6kv

n/a

n/a

n/a

n/a

√: product available n/a: not available



features

  • dc-voltage capability up to 1500v for 1kv version

  • current rating 0 – 5ka (depending on model)

  • switch-off current up to 20ka (depending on model)

  • very short off time in µs range

  • totally isolated to the main grid

  • can be used in high or low side power switching

  • bidirectional current flow

  • liquid cooling

  • internal self-diagnostic capability

    • gate drive unit

    • water in- and outlet temperature

    • water in- and outlet pressure

  • interface to overall controller

    • optical (glass or plastic)

    • modbus-tcp

    • other protocols on request

  • dnv-gl type approval (pending)



ordering information

ident number

description


aa-10411-101

dc-breaker

0.5ka

1kv

aa-10411-102

dc-breaker

1ka

1kv

aa-10411-103

dc-breaker

2ka

1kv

aa-10411-104

dc-breaker

3ka

1kv

aa-10411-105

dc-breaker

3.5ka

1kv

aa-10411-106

dc-breaker

4ka

1kv

aa-10411-107

dc-breaker

4.5ka

1kv

aa-10411-108

dc-breaker

5ka

1kv
